Key Features 100% original VACON / Danfoss brand new product Heavy-duty design for crane and harsh industrial environments High-precision vector control for stable lifting and traveling Overload capacity and strong anti-shock performance Built-in safety protection: overcurrent, overvoltage, overtemperature, stall Compatible with various control systems and field buses Low noise, high efficiency, long service life IP20 protection, standard industrial enclosure
Description
100% Original & Brand New • 110-132 kW • 380-500V • Three Phase • IP21

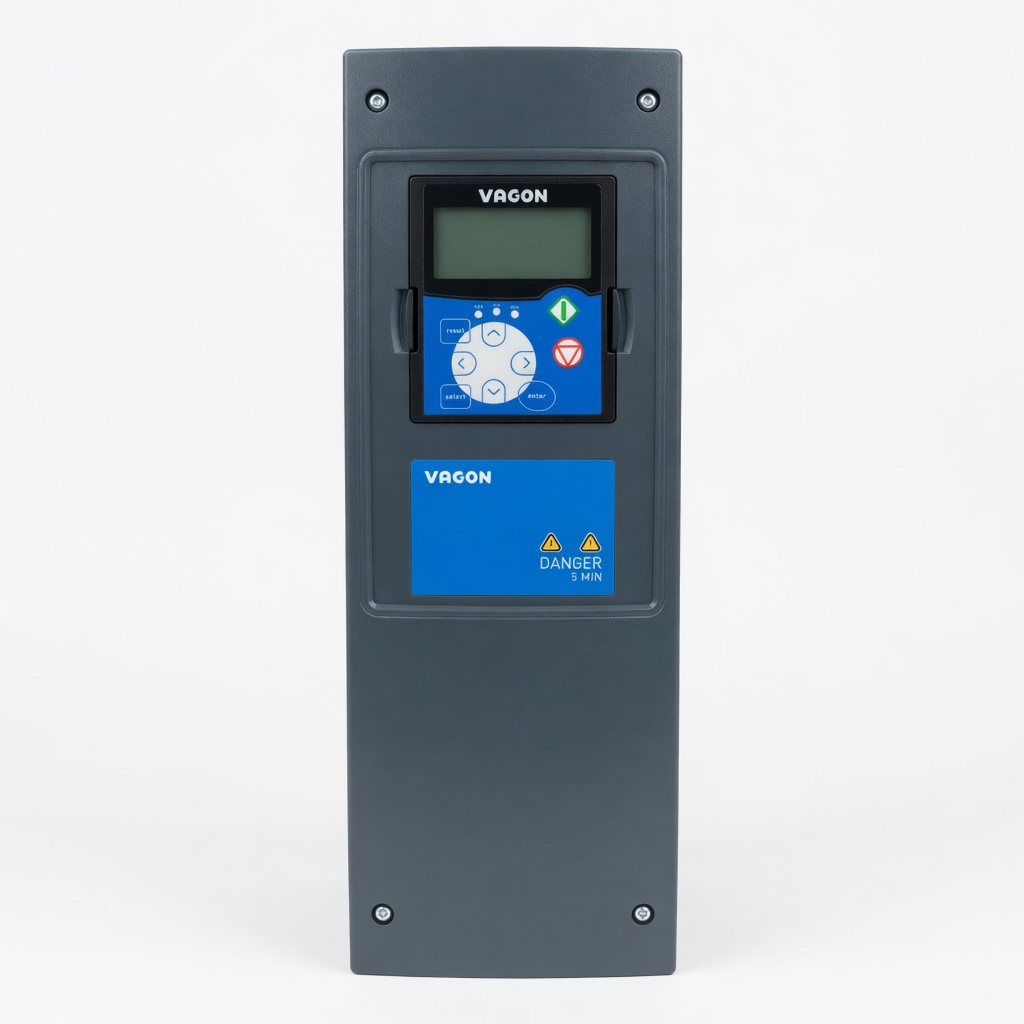

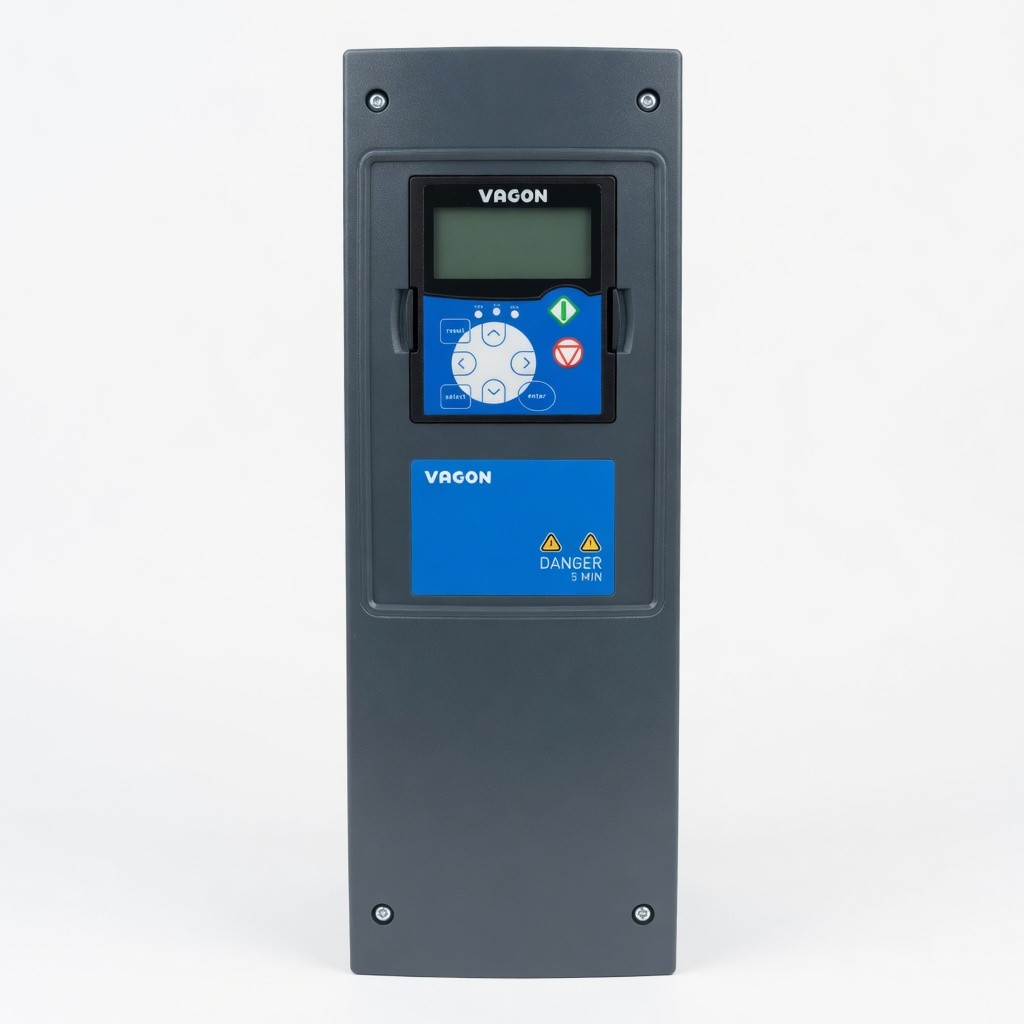

VACON® NXP Air-Cooled Frequency Converter (Frame FR9)
110 kW (Heavy Duty) / 132 kW (Normal Duty)
380–500 VAC, 3-Phase (465–800 VDC)
261 A (ND) / 205 A (HD)
IP21 / NEMA 1 • FR9
The VACON® NXP02615-A2H0SSG-A1A200D200 (Part No. 136H6933) is a high-performance, air-cooled AC variable frequency drive from the renowned VACON NXP series (now under Danfoss). Designed for demanding industrial applications, it delivers exceptional reliability, precision control, and energy efficiency.
This 100% original and brand-new unit is ideal for crane and hoist systems, conveyors, pumps, fans, lifts, and heavy machinery where robust performance is critical.
Superior dynamic performance and vector control
Modular design with extensive option cards
Built for continuous duty in harsh industrial environments
Excellent energy savings and low harmonics
Easy commissioning with alphanumeric display
| Model | NXP02615-A2H0SSG-A1A200D200 |
|---|---|
| Part Number | 136H6933 |
| Power Rating | 110 kW (Heavy Duty 150%) / 132 kW (Normal Duty 120%) |
| Input Voltage | 380 – 500 VAC, 3-phase (465 – 800 VDC) |
| Rated Output Current | 261 A (Normal Duty) / 205 A (Heavy Duty) |
| Frame Size | FR9 |
| Enclosure Rating | IP21 / NEMA 1 |
| Cooling Method | Air-cooled |
| Control Panel | Alpha-numeric display keypad |
| EMC Classification | IEC61800-3 (Class H) |
| Brake Chopper | No (optional external) |
| Applications | Cranes, hoists, conveyors, pumps, fans, elevators, industrial automation |
Fast delivery • Competitive pricing • Full warranty
Authorized VACON / Danfoss Partner
100% Genuine Products
Technical Support in English & Chinese
Crane & Hoist Application Expertise
Open/closed loop vector control with outstanding dynamic performance.
Supports multiple fieldbus protocols via option boards (Profibus, Modbus, Ethernet, etc.).
5 slots for I/O and communication options. Easy to expand.
Built for harsh environments with wide temperature range and high overload capacity.
Optimized for minimum energy consumption in variable torque applications.
Compact FR9 frame with clear terminal layout and user-friendly keypad.
